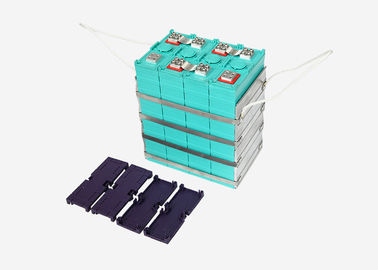

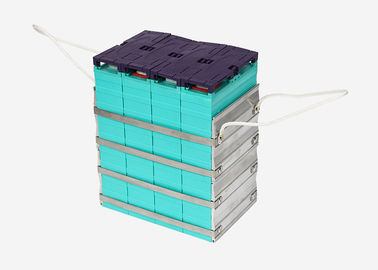

Data Center High Voltage Lithium Battery System 600V 750V 100Ah Backup

Data Center High Voltage Lithium Battery System 600V 750V 100Ah Backup

Brand Name: GBS
Model Number: GBS-LFP100Ah-C
MOQ: 1 pcs
Price: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1800000 pcs per year
Detail Information
Place of Origin:
CHINA
Certification:
CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001,TS16949
Application:
Data Center, EV, Telecom, Solar Energy Storage,motorcycle Etc
Life Cycle:
More Than 3000 Times
Weight:
2.3kgs
Payment:
TT,LC
Name:
High Voltage Lithium Battery
Certification:
CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001,TS16949
Packaging Details:
carton
Supply Ability:
1800000 pcs per year
Highlight:

lithium ion battery pack

,

lithium ion deep cycle battery

Product Description

rechargeable lithium ion battery LFP cell 100Ah for electric scooter







Features:



a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of lead acid battery.

c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

d. Good performance at high temperature and high temperature resistance

e. Low self-discharge rate, less than 3% monthly.

f. No memory effects and highly efficient charge.

g. Environment friendly: Clean and Green energy poses no pollution on our environment

Application:

Electric vehicle, e-boat, solar system, energy storage system telecom, home solar system ,Wheelchair, E-scooter, golf cart/trolley, postal van, road sweeper, industrial sweeper, ride-on floor sweeper,cleaning sweeper, floor sweeper, sweeper car....



Internal impedance ≤0.5mΩ
Standard charge 0.5C
Fast charge 1C
End of charge 3.65V
Standard discharge 0.5C
Max discharge 1C
End of discharge 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 2.3kg
Dimensions

126×46×233mm



Data Center High Voltage Lithium Battery System 600V 750V 100Ah Backup 0





Basic Performance:

1. Output with high magnification: instant impulse discharge current is 10C for 2 seconds.

2. Good performance under high temperature, it could work under 65℃ temperature.The battery structure is safe and good.

3. Good performance under low temperature,discharge capacity is no less than 90% of rated capacity when discharging with 1C under -20℃;no less than 70% of rated capacity with 0.33C.

4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

5. Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

6. It can fast charging. It could be charged to 80% within 0.5h and charged full with 1h.
